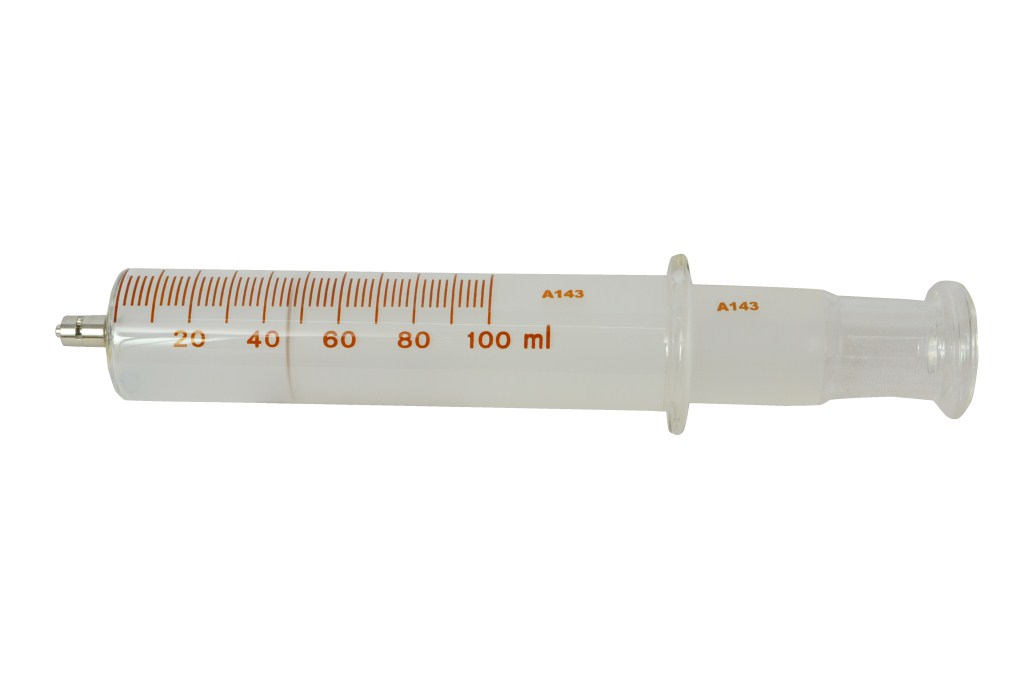

100ml Matched Numbered Metal Luer Lock Empty Glass Syringe with 2ml graduation for Transformer Oil Sampling/DGA.
CATALOG NO. : T-100708
FEATURES
- The syringe is made from heat resistant borosilicate glass type 1
- It made in accordance to confirm ISO 594 &ISO 595 standards.
- The material and construction are resistant to breakage from shock and sudden temperature changes
- The product is annealed and tested until free of internal strain, to withstand repeated washing with hot water
- Reinforced at luer lock tip and barrel base, the points at which most breakage occurs.
- The syringe cylinder plunger fit is leak proof and meets the requirements of Federal Specification GG-S-92 lb/A-A-54840/ISO 7886 for any leakage or backflow & for smooth plunger movement.
- In compliance with IEC-60567, IEC-60475 & ASTM-D 3613
- The smooth movement between barrel and plunger without back flow is achieved by grinding the plunger individually and fitted to barrel.
- Reinforced flanges of barrel are flat enough to avoid rolling.
- The syringes are available in universal fit or custom fit design. The custom fit syringes are uniquely numbered for matching
- The syringes metal luer lock tip meets the specification of the American National Standards for Medical Materials conical fitting performances ISO 594 (Previously HIMA MD 70.1 – 1983)
- The fitting is made from chrome-plated brass and fits all female luer lock fitting as per ISO 594.
- The syringe is clearly marked with appropriate graduations.
- The graduation marks are permanently fused for lifetime legibility.
